Alarm cables
Alarm cable nx0.22 (M)
Application:
Designed for security and fire alarm systems, access control and communication systems.

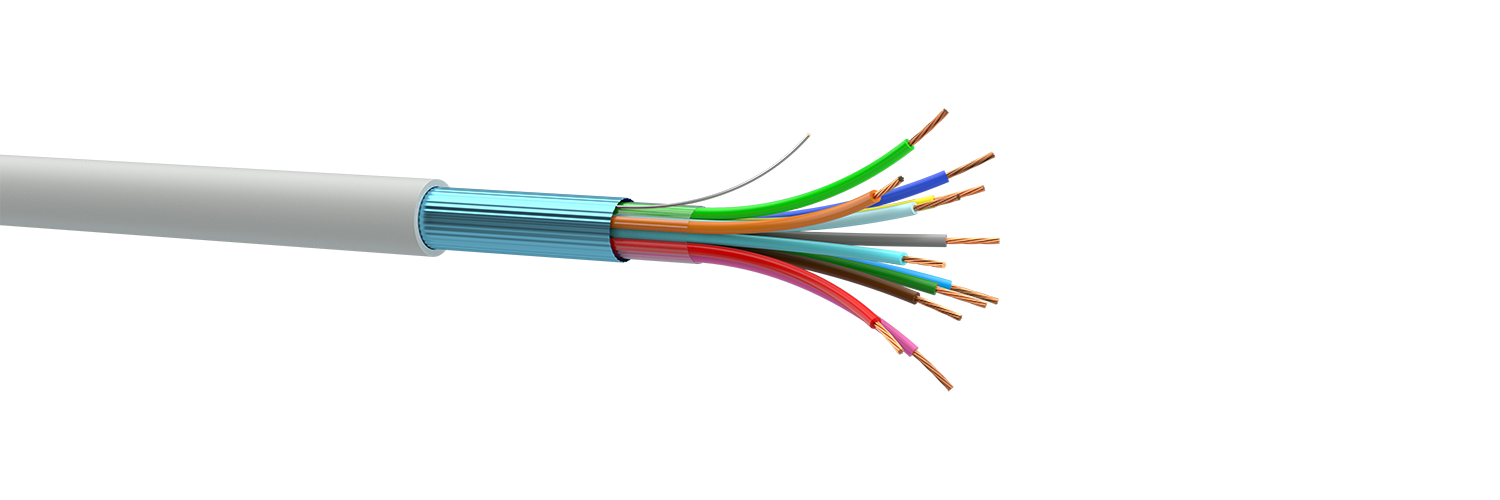

Cable design:
1. Conductor: aluminum wire cladded with copper 0.60 mm.
2. Insulation: PE.
3. Shield material: aluminum foil (if needed).
4. Copper tinned contact wire.
5. Sheath: PVC.
Installation and operation conditions
Installation Temp Rating: -10 °C ... +50 °C;
Operating Temp Range: -20 °C ... +60 °C.
Min Bend Radius/Minor Axis: ≥ 12 cable diameters.
Standards:
Main technical and mechanical characteristics
| Rated voltage, V | 250 |
| Test voltage, V | 1500 |
| Insulation Resistance, Mohm / km | >150 |
| Resistance of conductors, Ohm / km | 90 |
| Core resistance, Ohm / km | 7х0,20 |
| Electrical capacity "core-core", nF / km | 130 |
Nomenclature and mass-dimensional characteristics
| Cable brand | Outside diameter, mm | Weight, kg/km |
| Alarm Cable 2*0,22 | 3,6 | 17,8 |
| Alarm Cable 4*0,22 | 4,2 | 25,2 |
| Alarm Cable 6*0,22 | 5,0 | 34,2 |
| Alarm Cable 8*0,22 | 5,5 | 43,2 |
| Alarm Cable 10*0,22 | 6,0 | 52,1 |
| Alarm Cable 12*0,22 | 6,6 | 59,3 |
